Winzz Lead Burner: High-Gain Heritage Modern IR Power Total Control

The Winzz Lead Burner was built for guitarists who want it all: authentic tube response, aggressive high-gain tones, modern cabinet flexibility, and direct connectivity for stage and studio. Inspired by the roaring British high-gain sounds of the ’80s and refined with expanded voicing options, the Lead Burner goes beyond vintage influence and delivers a next-generation amplification experience.

With a 30-watt output section, dual 12AX7 (JJ) preamp tubes, a solid-state power amp, and fully integrated 24-bit IR cabinet simulation, this compact powerhouse is equally at home on stage, in the studio, or on your desktop.

This isn’t just another amp.

It’s your entire rig — reimagined.

Built-In IR Technology

Real Cabinet Feel. Zero Extra Gear.

At the core of the Lead Burner is a high-resolution IR engine operating at 24-bit / 44.1kHz with 1024-point processing. That means detailed cabinet recreation with a 100dB signal-to-noise ratio and a full 20Hz–20kHz frequency range.

Nine professionally installed cabinet IRs come ready to deliver everything from sparkling combo-style clarity to tight 4x12 punch that include tones based on legendary amplifiers from Fender®, VOX®, Marshall®, Orange®, Peavey®, and Mesa/Boogie®. An 11-position IR selector gives you instant access to all factory options plus two user-loadable slots.

Want your own cab tone?

Simply connect via the built-in Type-C port. The amp appears as a USB drive, allowing you to drag and drop 24-bit, 44.1kHz mono WAV IR files directly into the unit. It’s fast, intuitive, and built for players who demand customization.

Dial in your cabinet character with the dedicated IR Level control and send consistent, mic-free tone straight to front-of-house, your recording interface, or your headphones.

Tube-Driven Feel. Precision Control.

The Lead Burner’s preamp section features two 12AX7 (JJ) tubes for authentic tube harmonic complexity and dynamic response. Paired with a dependable 30W solid-state power amp, you get punch, clarity, and consistent performance at any volume.

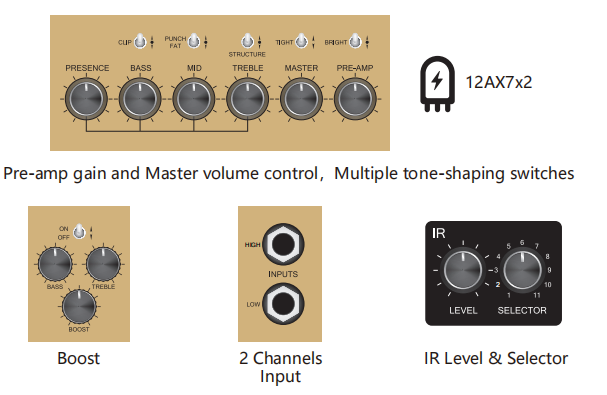

A full passive EQ section gives you foundational shaping control:

Presence for upper harmonic definition

Bass, Mid, and Treble for detailed tone sculpting

Pre-Amp control to shape gain

Master control for overall output

But the Lead Burner doesn’t stop at traditional tone stacks.

Advanced Gain Architecture

Shape Your Distortion — Don’t Just Add More

The Lead Burner is engineered for tonal flexibility through multiple voicing switches that dramatically expand your sound palette.

The Clip switch adjusts the character of gain and compression.

The Structure switch reshapes gain level, frequency response, and distortion behavior.

The Punch/Fat control modifies low- and mid-frequency response, offering either tighter dynamic impact or thicker body.

The Tight switch sharpens your attack by trimming low-end frequencies.

The Bright switch enhances high-frequency clarity and articulation.

From articulate crunch to saturated lead tones, the Lead Burner adapts instantly to your playing style.

Integrated Boost

Instant Lead Authority

Need to step forward in the mix? The onboard Boost section gives you seamless transitions without added pedals.

Engage Boost On/Off and fine-tune your sound using independent Boost Bass, Boost Treble, and Boost Level controls. Add gain, adjust tonal emphasis, and increase output volume — all precisely dialed to your preference.

Whether it’s a solo lift or heavier rhythm punch, the Boost section is built for real-world performance.

Stage-Ready. Studio-Ready. Practice-Ready.

The Lead Burner was designed for modern connectivity.

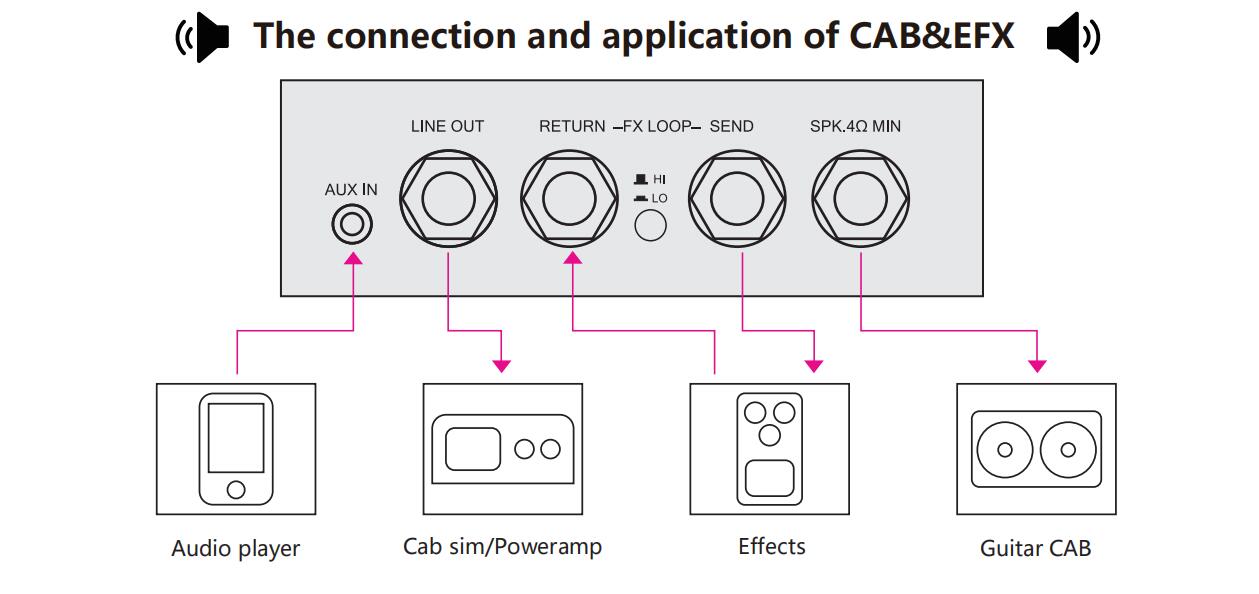

The balanced IR XLR output allows direct connection to mixers, audio interfaces, and PA systems with consistent cabinet simulation. An added IR Line Out supports monitors or high-Z inputs. A separate Line Out without simulation lets you connect to an external power amp or IR loader.

Silent practice is effortless with the IR-processed headphone output. The AUX input allows you to connect external audio devices for jamming along with tracks.

An FX Loop with Send and Return connections integrates pedals and rack effects seamlessly, with a selectable +12 dB / –12 dB level switch to match your gear properly. A speaker output supports cabinets rated at a minimum of 4 ohms, giving you traditional cabinet flexibility when desired.

Compact Power

Despite its professionally upgraded features, the Lead Burner is still highly portable.

· 30 watts of output power

· 40W power consumption

· Dimensions: 24cm x 14cm x 14cm

· Weight: 3.5kg

It’s easy to transport, simple to set up, and powerful enough to handle rehearsals, gigs, and recording sessions. A carrying bag and power cord are included.

Why the Lead Burner?

Because you need more than one sound.
You need flexibility without complexity.
You need direct recording without sacrificing feel.
You need stage volume without hauling oversized rigs.

The Winzz Lead Burner combines tube warmth, advanced gain shaping, and professional IR cabinet technology into one streamlined, compact amplifier.

Plug in.
Dial it in.
Burn the lead.

Your stage awaits!
